The KVM-1901HD is a 19-inch standard rack-mountable all-in-one KVM terminal featuring an 18.5-inch large screen, an integrated LED display, keyboard, and mouse, as well as built-in stereo speakers. It supports two video inputs (HDMI and VGA), Measuring 506 mm in length, it is compatible with cabinets 800–1040 mm deep and is ideal for server rooms, surveillance, and industrial control environments requiring a high-definition large screen and audio output.
1920*1080 18.5''
KVM-1901HD
KVM-1901HD
| Product Features:
1. All-in-One Integrated Design: Combines an 18.5-inch LED TFT LCD display, an ultra-slim silent keyboard, and a high-sensitivity touchpad into a single unit, saving rack space and simplifying deployment.
2. High-Definition Display: Supports 1920×1080 60Hz HD resolution, delivering clear and detailed images to meet a wide range of O&M display needs.
3. User-Friendly Rack Compatibility: The pull-out design, combined with self-locking rails, allows for flexible adjustment to fit racks with depths ranging from 800 to 1040 mm; a single person can quickly complete installation and removal, significantly improving O&M efficiency.
4. Multi-Interface Compatibility and Expansion: Comes standard with VGA/HDMI video ports; front-panel USB ports support wired and wireless mouse connections, making it more convenient to connect external devices.
5. Wide Device and System Compatibility: Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang, among others; supports multiple operating systems including Windows, Linux, CentOS, Kylin, and Ningsi, offering high versatility.
6. Rugged and Durable Construction: Made from environmentally friendly ROHS-compliant materials with a black high-temperature spray-painted finish featuring a speckled texture, it is wear-resistant and robust, suitable for the long-term, stable operating environment of data centers.
| Product Connection Diagram:

Note: The two interfaces cannot be used simultaneously.
| Product Dimensions:

| Product Specifications:
model | KVM-1901HD | |
Number of controlled devices | 1 PC | |
interface type | VGA/HDMI, front USB port | |
LCD | size | 18.5-inch TFT LED display with a 16:9 aspect ratio |
resolution ratio | 1920*1080 @ 60HZ | |
Maximum Color | 16.7M | |
luminance | 250 nits (customizable for highlight display) | |
contrast ratio | 1000:1 | |
Show display surface type/Pixel spacing | 409.96*230.04 16:9 / 0.213 x 0.213 mm | |
Keyboard/Mouse | Key 104: Ultra-thin silent keyboard with a scroll wheel and touchpad | |
source | Supports dual power sources: AC 100–240 V at 50/60 Hz, or a power adapter (12 V, 3.33 A); a built-in power supply is included by default. | |
Actual power consumption of the entire device | Approximately 18 W | |
Material Technology | Environmental-friendly ROHS-compliant materials | |
Appearance Color | Black high-temperature spray painting dot application process (other colors can be customized) | |
Size (L x W x H) | 506mm*465mm*44mm; | |
Guideway pulling stroke | 115MM | |
Total unfolding height | 345MM | |
Product Weight | Net weight: 12.50 kg; Gross weight: 17.50 kg | |
Install the cabinet | 800–1040 mm (Standard hanging ear length: 400 mm; 650 mm/750 mm available upon request) | |
working temperature | 0℃~60℃ | |
storage temperature | -20℃~70℃ | |
humidity | 0%–80% RH (no condensation) | |
| Product Options:

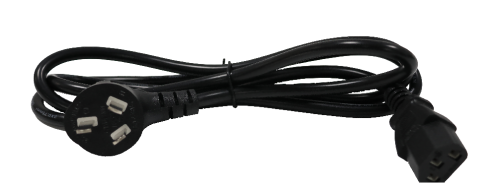

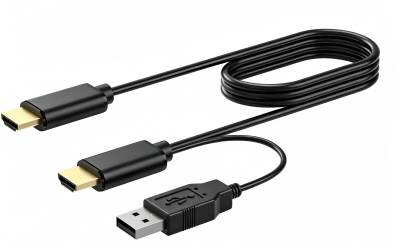

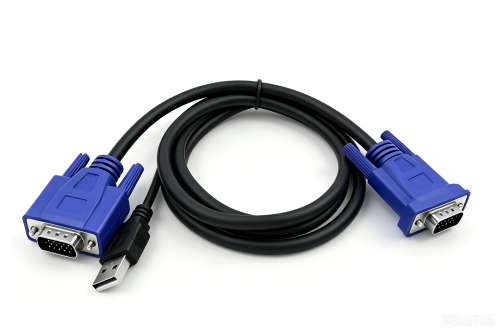

KVM-1901HD | 1901HD Host / 1.8-meter VGA cable *1 / 1.5-meter HDMI+USB cable / 1.5-meter Chinese standard power cord |
Optional | Supports custom DVI connectors |

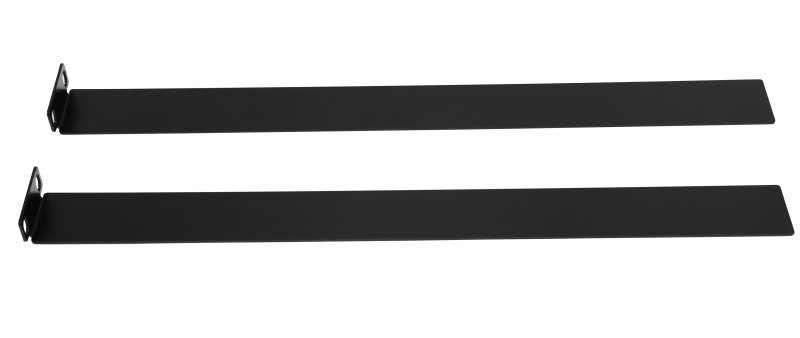

fittings of a machine | Marketing Materials | signal wire | power line | hangers |
|
|
|
|
|
| ||||
Quantity |
1 set | ① VGA cable *1 PCS ② HDMI cable *1 PCS |
1 PCS |
2 PCS |
