The KVM-1901HD is a 19-inch standard rack-mountable all-in-one KVM terminal featuring an 18.5-inch large screen, an integrated LED display, keyboard, and mouse, as well as built-in stereo speakers. It supports three video inputs: DVI, HDMI, and VGA. Measuring 506 mm in length, it is compatible with cabinets 800–1040 mm deep and is ideal for server rooms, surveillance, and industrial control environments requiring a high-definition large screen and audio output.
1920*1080 18.5''
KVM-1901HD
KVM-1901HD
| Product Features:
1. All-in-One Integrated Design: Combines an 18.5-inch LED TFT LCD display, an ultra-slim silent keyboard, and a high-sensitivity touchpad into a single unit, saving rack space and simplifying deployment.
2. High-Definition Display: Supports 1920×1080 60Hz HD resolution, delivering clear and detailed images to meet a wide range of O&M display needs.
3. User-Friendly Rack Compatibility: The pull-out design, combined with self-locking rails, allows flexible adjustment to fit racks with depths ranging from 800 to 1040 mm; a single person can quickly complete installation and removal, significantly improving O&M efficiency.
4. Multi-Interface Compatibility and Expansion: Comes standard with DVI/VGA/HDMI video interfaces; front-panel USB ports support wired and wireless mouse connections, making it more convenient to connect external devices.
5. Wide Device and System Compatibility: Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang, among others; supports multiple operating systems including Windows, Linux, CentOS, Kylin, and Ningsi, offering high versatility.
6. Rugged and Durable Construction: Made from environmentally friendly ROHS-compliant materials with a black high-temperature spray-painted finish featuring a speckled texture, ensuring wear resistance and durability, suitable for long-term, stable operation in data center environments.
| Product Connection Diagram:

Note: The three interfaces cannot be used simultaneously.
| Product Dimensions:

| Product Specifications:
model | KVM-1901HD | |
Number of controlled devices | 1 PC | |
interface type | Front-facing USB port supporting DVI, VGA, and HDMI interfaces | |
LCD | size | 18.5-inch TFT LED display with a 16:9 aspect ratio |
resolution ratio | 1920*1080 @ 60HZ | |
Maximum Color | 16.7M | |
luminance | 250 nits (customizable for highlight display) | |
contrast ratio | 1000:1 | |
Show display surface type/Pixel spacing | 409.96*230.04 16:9 / 0.213 x 0.213 mm | |
Keyboard/Mouse | Key 104: Ultra-thin silent keyboard with a scroll wheel and touchpad | |
source | Supports dual power sources: AC 100–240 V at 50/60 Hz, or a power adapter (12 V, 3.33 A); a built-in power supply is included by default. | |
Actual power consumption of the entire device | Approximately 18 W | |
Material Technology | Environmental-friendly ROHS-compliant materials | |
Appearance Color | Black high-temperature spray painting dot application process (other colors can be customized) | |
Size (L x W x H) | 506mm*465mm*44mm; | |
Guideway pulling stroke | 115MM | |
Total unfolding height | 345MM | |
Product Weight | Net weight: 12.50 kg; Gross weight: 17.50 kg | |
Install the cabinet | 800–1040 mm (Standard hanging ear length: 400 mm; 650 mm/750 mm available upon request) | |
working temperature | 0℃~60℃ | |
storage temperature | -20℃~70℃ | |
humidity | 0%–80% RH (no condensation) | |
| Product Options:
KVM-1901HD | 1901HD Host / DVI Cable / USB Cable (KB/MS) / 1.5M National Standard Power Cord / HDMI Cable & VGA Cable (sold separately) |

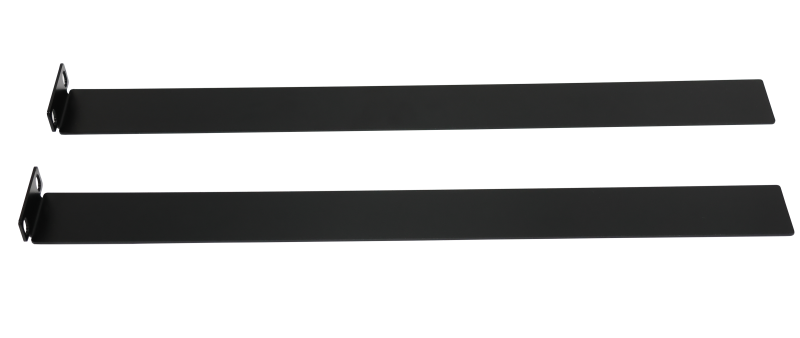

fittings of a machine | Marketing Materials | signal wire | power line | hangers |
|
|
|
|
|
| ||||
Quantity |

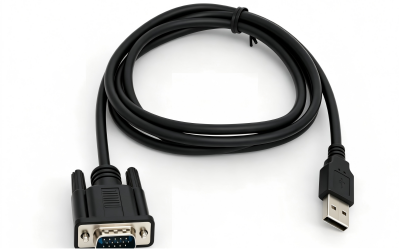

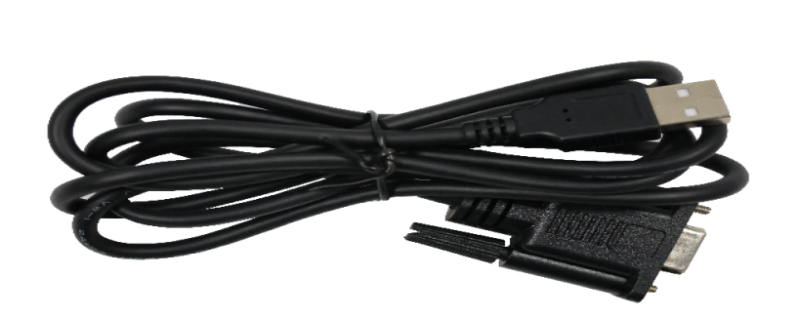

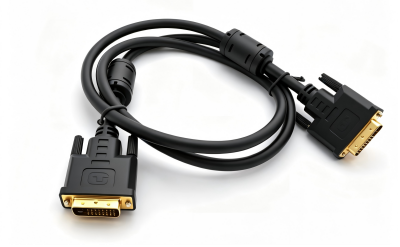

1 set | ① DVI cable *1 PCS ② USB cable *1 PCS |
1 PCS |
2 PCS |
