The KVM-21501HD is a standard rack-mountable 21.5-inch LED KVM switch that integrates a 21.5-inch LED display, keyboard, and mouse. Compatible with mainstream standard racks, it provides a stable and user-friendly centralized management terminal for data centers and industrial control environments.
1920*1080 21.5"
KVM-21501HD
KVM-21501HD
| Product Features:
1. All-in-One Integrated Design: Combines a 21.5-inch LED TFT LCD display, an ultra-slim silent keyboard, and a high-sensitivity touchpad into a single unit, saving rack space and simplifying deployment.
2. High-Definition Display: Supports 1920×1080 60Hz HD resolution, delivering clear and detailed images to meet a wide range of O&M display needs.
3. User-Friendly Rack Compatibility: The pull-out design, combined with self-locking rails, allows for flexible adjustment to fit racks with depths ranging from 800 to 1040 mm; a single person can quickly complete installation and removal, significantly improving O&M efficiency.
4. Multi-Interface Compatibility and Expansion: Comes standard with a VGA video port; front-panel USB ports support wired and wireless mouse connections, making it more convenient to connect external devices.
5. Wide Device and System Compatibility: Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang, among others; supports multiple operating systems including Windows, Linux, CentOS, Kylin, and Ningsi, offering high versatility.
6. Rugged and Durable Construction: Made from environmentally friendly ROHS-compliant materials with a black high-temperature spray-painted finish featuring a speckled texture, it is wear-resistant and robust, suitable for the long-term, stable operating environment of data centers.
| Product Dimensions:

| Product Specifications:
model | KVM-21501HD | |
Number of controlled devices | 1 computer | |
interface type | USB &VGA | |
LCD | size | 21.5-inch TFT LED display with a 16:9 aspect ratio |
resolution ratio | 1920*1080 @ 60HZ | |
Maximum Color | 16.7M | |
luminance | 250 nits (customizable for highlight display) | |
contrast ratio | 1000:1 | |
Show display surface type/Pixel spacing | 0.297 x 0.297 mm | |
Keyboard/Mouse | Key 104: Ultra-thin silent keyboard with a scroll wheel and touchpad | |
source | Power Adapter: 12V 3.33A | |
Actual power consumption of the entire device | Approximately 18 W | |
Material Technology | Environmental-friendly ROHS-compliant materials | |
Appearance Color | Black high-temperature spray painting dot application process (other colors can be customized) | |
Size (L x W x H) | 686.9mm*465mm*44mm; | |
Guideway pulling stroke | 115MM | |
Total unfolding height | 435MM | |
Product Weight | Net weight: 17.00 kg; Gross weight: 22.50 kg | |
Install the cabinet | 800-1040mm | |
working temperature | 0℃~60℃ | |
storage temperature | -20℃~70℃ | |
humidity | 0%–80% RH (no condensation) | |
| Product Options:

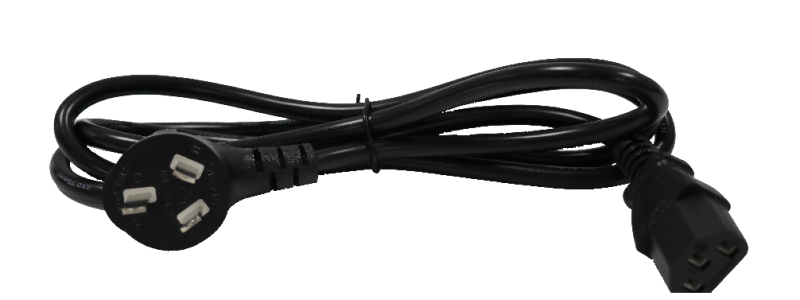

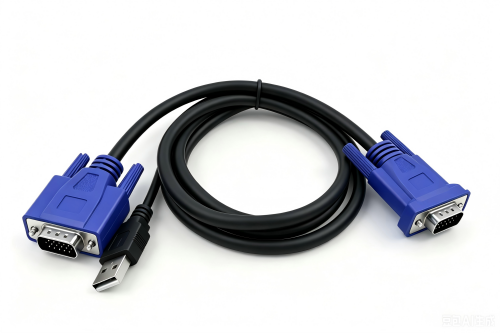

KVM-21501HD | 21501HD main unit / 1 piece of VGA 1.8M cable / 1.5M power cable compliant with national standards |
Optional | The USB & VGA extension cable supports 3M,5M, or 10M speeds. |
PS/2, USB, and VGA mixed-cable |

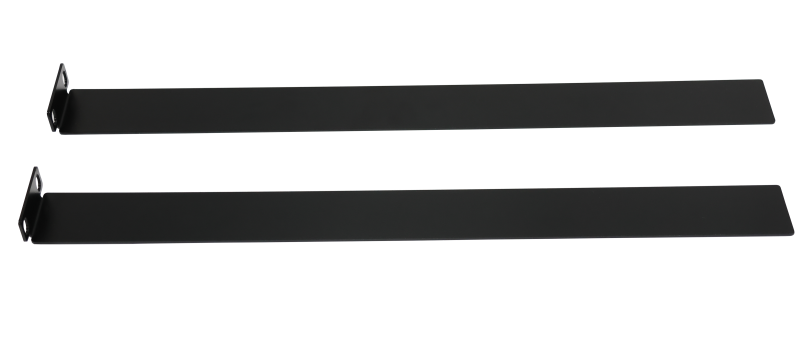

fittings of a machine | Marketing Materials | signal wire | power line | hangers |
|
|
|
|
|
Quantity | 1 set | 1 PCS | 1 PCS | 2 PCS |
| Product Packaging:
