Portable 17.3-inch VGA/HDMI Single-Port KVM Console
1920*1080 17.3"The BXKVM-1701HD is a portable 4-in-1 KVM terminal that integrates a 17.3-inch LED HD display, keyboard, mouse, and switch into a single unit. Featuring a lightweight aluminum alloy construction, it is specifically designed for mobile scenarios such as on-site debugging, data center inspections, and emergency desktop maintenance.
1920*1080 17.3"
BXKVM-1701HD
- Parameters
BXKVM-1701HD
| Product Features:
1. All-in-One Integrated Design: Combines a 17.3-inch LED TFT LCD display, an ultra-slim silent keyboard, and a highly sensitive touchpad into a single unit.
2. High-Definition Display Performance: Supports resolutions up to 1920×1080 at 60 Hz, delivering true-to-life color reproduction and clear, stable images.
3. Portable Design: Features a portable mounting design suitable for a variety of environments.
4. Multi-Interface Compatibility and Expansion: Comes standard with VGA/HDMI video ports; front-panel USB ports support wired and wireless mouse connections, making it easier to connect external devices.
5. Wide Range of Device and System Compatibility: Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang; supports multiple operating systems including Windows, Linux, CentOS, Kylin, and Ningsi, offering strong versatility.
| Three-view drawings of the product:
| Product Specifications:
model | BXKVM-1701HD | |
Number of controlled devices | 1 PC | |
interface type | USB &VGA&HDMI | |
LCD | size | 17.3' TFT LED |
resolution ratio | 1920*1080 @ 60HZ | |
Maximum Color | 16.7M | |
luminance | 300 nits (customizable for high brightness display) | |
contrast ratio | 600:1 | |
Show display surface type/Pixel spacing | 380*215 16：9 / 0.198 x 0.198 mm | |
Keyboard/Mouse | Key 104: Ultra-thin silent keyboard with a scroll wheel and touchpad | |
source | Power Adapter: 12V 3.33A | |
Actual power consumption of the entire device | Approximately 18 W | |
Material Technology | Environmental-friendly ROHS-compliant materials | |
Appearance Color | Black high-temperature spray painting spot application process (other options available upon request) | |
Size (L x W x H) | 303.9mm*411.41mm*44mm； | |
Total unfolding height | 330MM | |
Product Weight | Net weight: 3.55 kg; Gross weight: 4.80 kg (aluminum alloy sheet metal) | |
working temperature | 0℃~60℃ | |
storage temperature | -20℃~70℃ | |
humidity | 0%–80% RH (no condensation) | |
| Product Options:

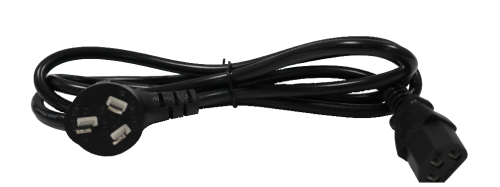

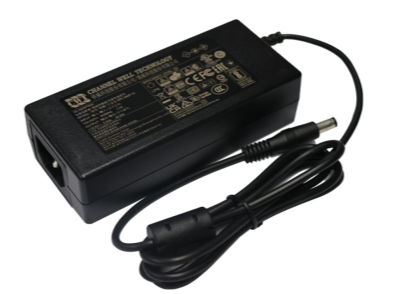

BXKVM-1701HD | 1701HD Main Unit / USB + HDMI Cable / 1.5-meter National Standard Power Cord / 12V 2A Power Adapter / 1.8-meter VGA Cable |
fittings of a machine | Marketing Materials | signal wire | power line | adapter |
picture |
|
|
|
|
| ||||
quantity |

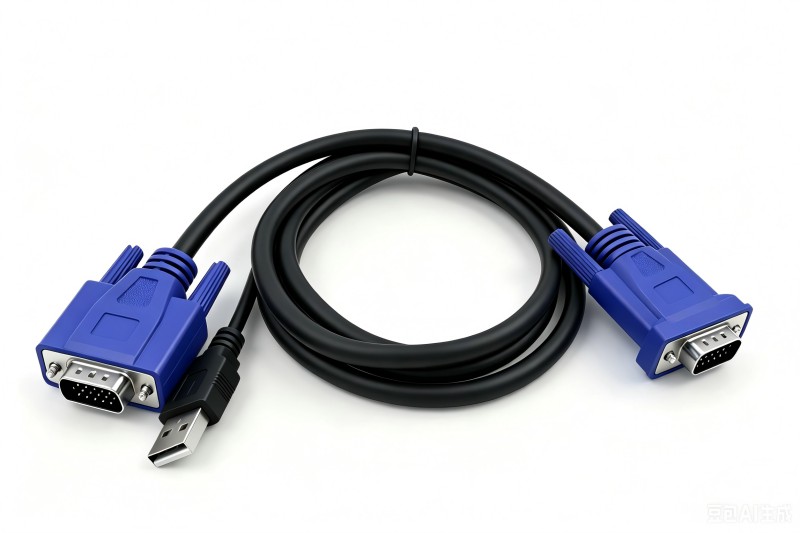

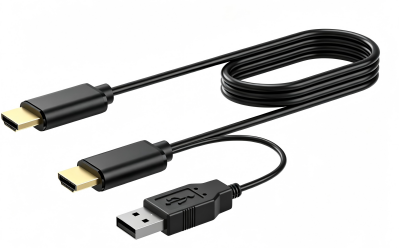

1 set | ① VGA cable *1 PCS ② HDMI cable *1 PCS |
1 PCS |
1 PCS |
