The KVM-G1170-16A is a 2U standard rack-mountable ruggedized KVM switch that integrates a 17-inch TFT-LCD display, an ultra-slim, silent keyboard, a high-sensitivity touchpad, and a 16-port KVM switch—all in one unit. It is specifically designed for harsh environments such as vehicle-mounted applications, field operations, mobile command centers, and server rooms—where high vibration, high salt fog, and high humidity are prevalent—and enables centralized management of 16 servers, industrial PCs,
17" VGA Switch OEM Customization Reinforced Customization
KVM-G1170-16A
KVM-G1170-16A

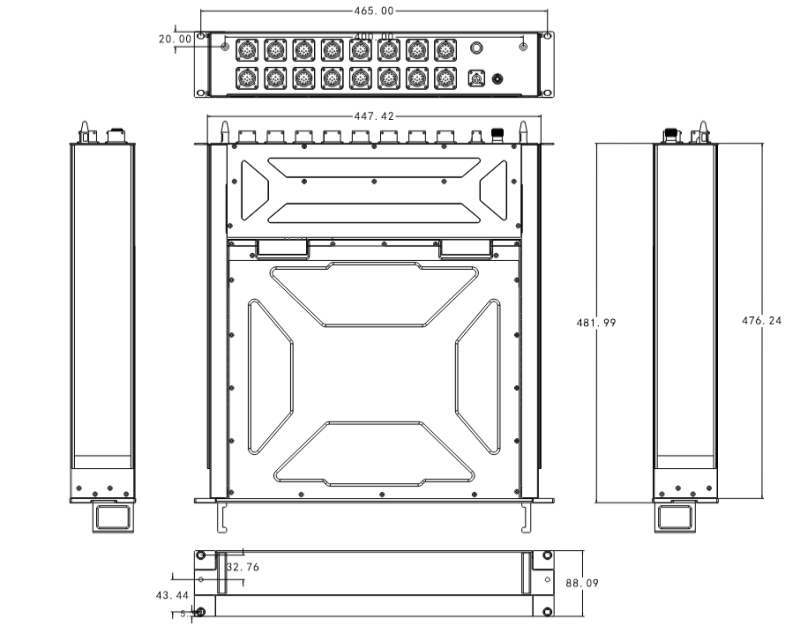

| Product three-view drawing:

| Product Technical Parameters:
Parameters |
KVM-G1170-16A |
2U Ruggedized Rack-Mounted |
17' TFT LCD, resolution 1280×1024 |
450-500(Typ.) |
16 VGA/USB inputs, 1 aviation connector power input |
104-key ultra-slim silent keyboard, industrial-grade high-sensitivity touchpad |
Brownish-green (other colors available upon request) |
Machined aluminum alloy, stainless steel fittings, conductive anodized interior surface, corrosion-resistant baked enamel finish |
Dust-proof, salt-fog-resistant, vibration-resistant, wide-temperature operation |
