19-inch Single-Port VGA Control Platform - 592 mm

19" 1280*1024

The KVM-1901M is a 19-inch standard rack-mount all-in-one device that integrates a 19-inch LED display, keyboard, and mouse. Designed specifically for the centralized management of servers and industrial control computers in data centers, its 592mm depth fits most standard racks, making it an efficient and convenient terminal for data center operations and maintenance.

19" 1280*1024

    KVM-1901M

  • Parameters

    KVM-1901M

▏Product Features:


1. All-in-One Integrated Design: Combines a 19-inch LED TFT LCD display, an ultra-slim silent keyboard, and a high-sensitivity touchpad into a single unit, saving rack space and simplifying deployment.


2. High-Definition Display: Supports a high resolution of 1280×1024 at 60 Hz, delivering clear and detailed images to meet a wide range of operations and maintenance display needs.


3. User-Friendly Rack Compatibility: The pull-out design, combined with self-locking rails, allows flexible adjustment to fit racks with depths ranging from 800 to 1040 mm; a single person can quickly complete installation and removal, significantly improving O&M efficiency.


4. Multi-Interface Compatibility and Expansion: Comes standard with a VGA video port; front-panel USB ports support wired and wireless mouse connections, making it more convenient to connect external devices.


5. Wide Device and System Compatibility: Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang, among others; supports multiple operating systems including Windows, Linux, CentOS, Kylin, and Ningsi, offering high versatility.


6. Rugged and Durable Construction: Made from environmentally friendly ROHS-compliant materials with a black high-temperature spray-painted finish featuring a speckled texture, ensuring wear resistance and durability, suitable for long-term, stable operation in data center environments.



▏Three-view drawings of the product:

▏Product Specifications:

model

KVM-1901M

Number of controlled devices

1 PC

interface type

VGA, front USB port

LCD

size

19' TFT  LED


resolution ratio

1280*1024 @ 60HZ


Maximum Color

16.7M


luminance

350 nits (customizable for highlight display)


contrast ratio

1000:1


Show display surface type/Pixel spacing

376.32*301.06 43  /  0.294 x 0.294 mm

Keyboard/Mouse

Key 104: Ultra-thin silent keyboard with a scroll wheel and touchpad

source

AC 100-240V~50/60Hz

Actual power consumption of the entire device

Approximately 18 W

Material Technology

Environmental-friendly ROHS-compliant materials

Appearance Color

Black high-temperature spray painting dot application process (other colors can be customized)

Size (L x W x H)

592mm*465mm*44mm

Guideway pulling stroke

45MM

Total unfolding height

413MM

Product Weight

Net weight: 11.30 kg; Gross weight: 16.00 kg

Install Cabinet

800–1040 mm (Standard hanging ear length: 400 mm; 650 mm/750 mm available upon request)

working temperature

0℃~60℃

storage temperature

-20℃~70℃

humidity

0%–80% RH (no condensation)


▏Product Options:

KVM-1901M

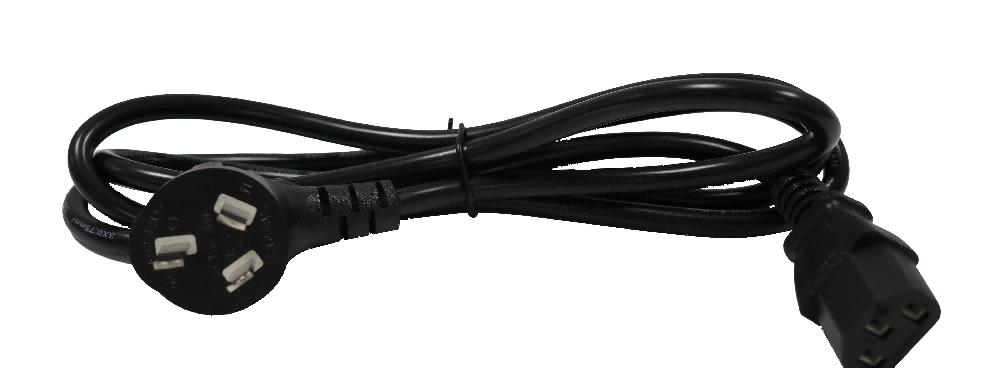

1901M Host / 1.8-meter VGA cable (1) / 1.5-meter standard power cord


fittings of a machine

Marketing Materials

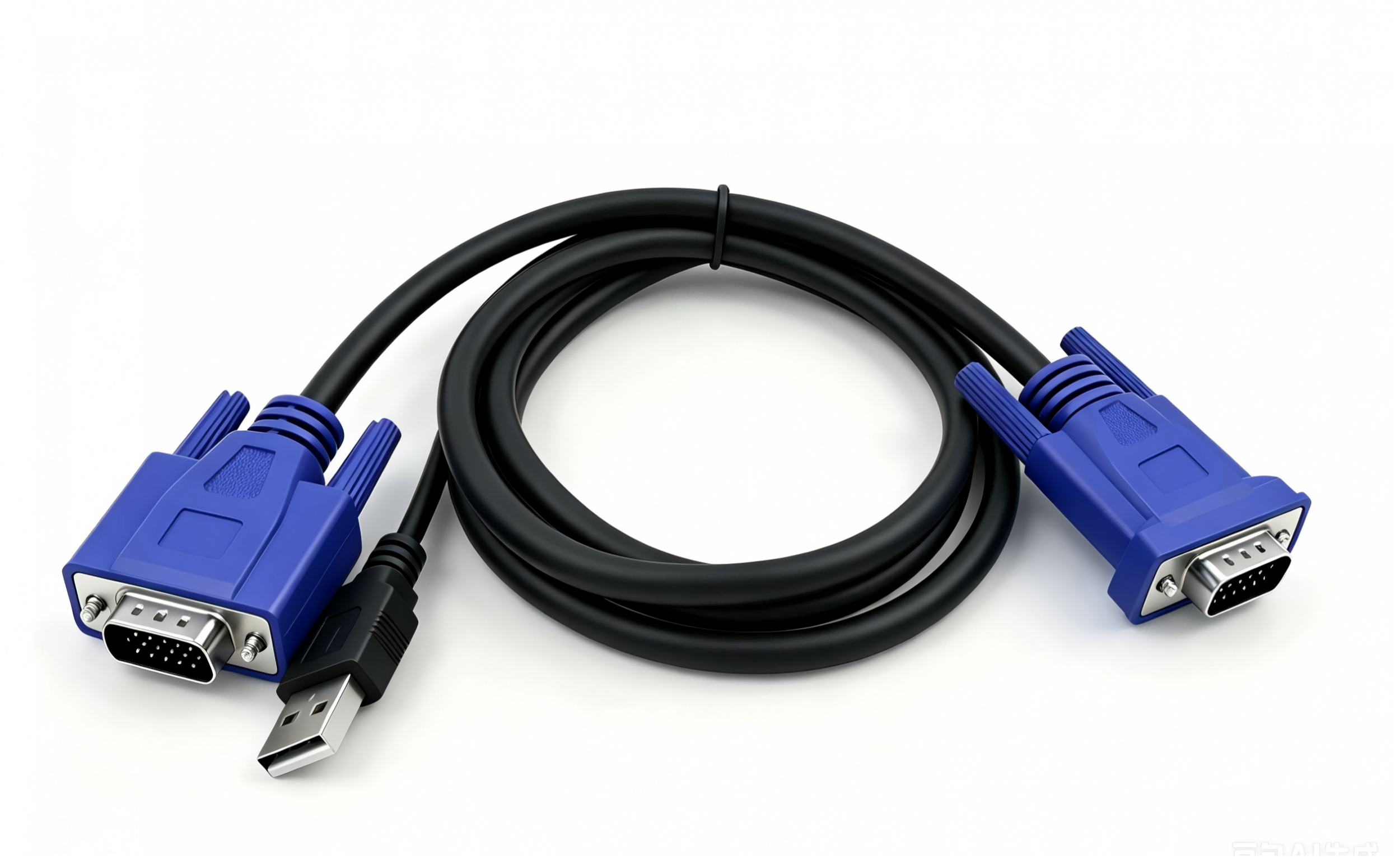

signal wire

power line

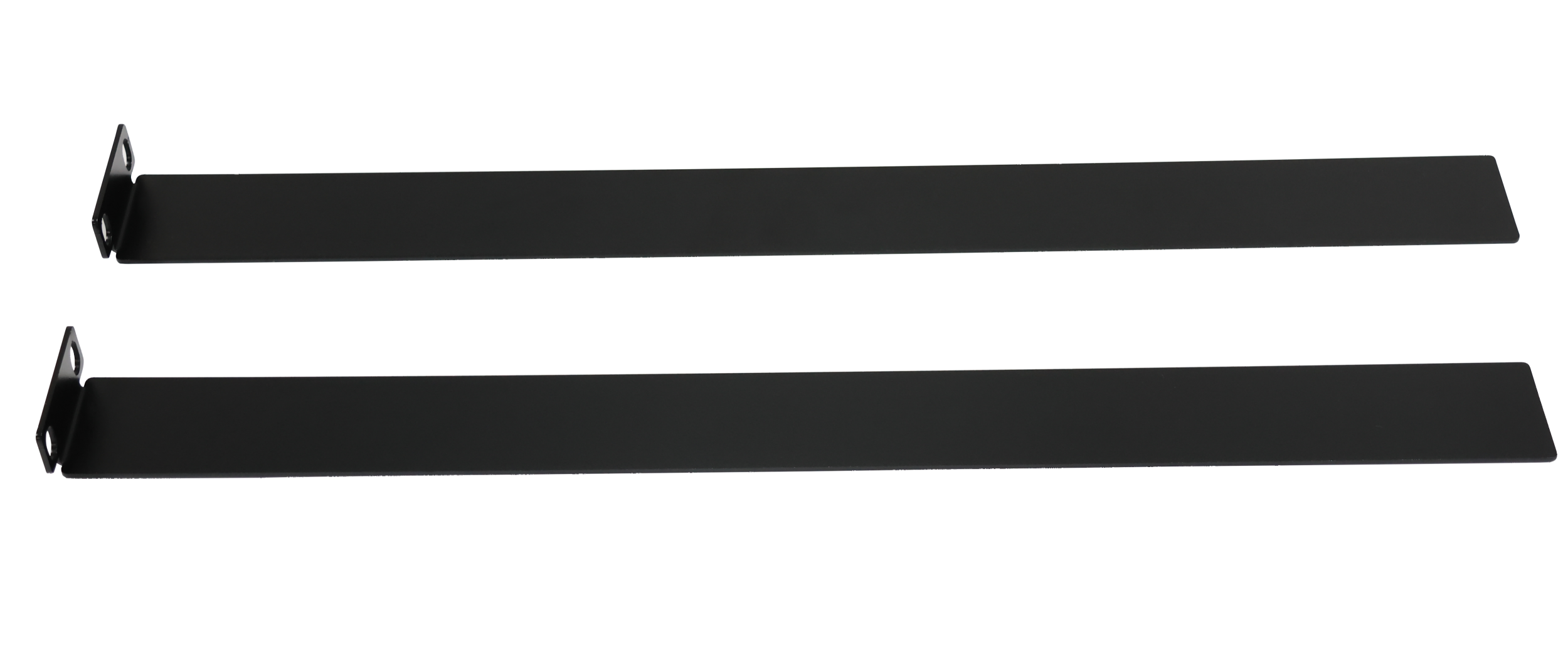

hangers










Quantity

1 set

1 PCS

1 PCS

2 PCS


19-inch Single-Port VGA Control Platform - 592 mm
The KVM-1901M is a 19-inch standard rack-mount all-in-one device that integrates a 19-inch LED display, keyboard, and mouse. Designed specifically for the centralized management of servers and industrial control computers in data centers, its 592mm depth fits most standard racks, making it an efficient and convenient terminal for data center operations and maintenance.
