18.5-inch, 1-Port VGA KVM Control Platform

1920*1080 18.5"

The KVM-1901HD is a 19-inch standard rack-mountable all-in-one KVM terminal featuring an 18.5-inch large screen, an integrated LED display, keyboard, and mouse, as well as built-in stereo speakers. It supports a single VGA video input, Measuring 506 mm in length, it is compatible with cabinets 800–1040 mm deep and is ideal for server rooms, surveillance, and industrial control environments requiring a high-definition large screen and audio output.

1920*1080 18.5"

    KVM-1901HD

  • Parameters

    KVM-1901HD

| Product Features:


1. All-in-One Integrated Design: Combines an 18.5-inch LED TFT LCD display, an ultra-slim silent keyboard, and a high-sensitivity touchpad into a single unit, saving rack space and simplifying deployment.


2. High-Definition Display: Supports 1920×1080 60Hz HD resolution, delivering clear and detailed images to meet a wide range of O&M display needs.


3. User-Friendly Rack Compatibility: The pull-out design, combined with self-locking rails, allows for flexible adjustment to fit racks with depths ranging from 800 to 1040 mm; a single person can quickly complete installation and removal, significantly improving O&M efficiency.


4. Multi-Interface Compatibility and Expansion: Comes standard with VGA/HDMI video ports; front-panel USB ports support wired and wireless mouse connections, making it more convenient to connect external devices.


5. Wide Device and System Compatibility: Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang, among others; supports multiple operating systems including Windows, Linux, CentOS, Kylin, and Ningsi, offering high versatility.


6. Rugged and Durable Construction: Made from environmentally friendly ROHS-compliant materials with a black high-temperature spray-painted finish featuring a speckled texture, it is wear-resistant and robust, suitable for the long-term, stable operating environment of data centers.




| Product Dimensions:

| Product Specifications:

model

KVM-1901HD

Number of controlled devices

1 PC

interface type

VGA/HDMI Front USB Ports

LCD

size

18.5-inch TFT LED display with a 16:9 aspect ratio


resolution ratio

1920*1080 @ 60HZ


Maximum Color

16.7M


luminance

250 nits (customizable for highlight display)


contrast ratio

1000:1


Show display surface type/Pixel spacing

409.96*230.04  169  /  0.213 x 0.213 mm

Keyboard/Mouse

Key 104: Ultra-thin silent keyboard with a scroll wheel and touchpad

source

Supports dual power sources: AC 100–240 V at 50/60 Hz, or a power adapter (12 V, 3.33 A); a built-in power supply is included by default.

Actual power consumption of the entire device

Approximately 18 W

Material Technology

Environmental-friendly ROHS-compliant materials

Appearance Color

Black high-temperature spray painting dot application process (other colors can be customized)

Size (L x W x H)

506mm*465mm*44mm

Guideway pulling stroke

115MM

Total unfolding height

345MM

Product Weight

Net weight: 12.50 kg; Gross weight: 17.50 kg

Install the cabinet

800–1040 mm (Standard hanging ear length: 400 mm; 650 mm/750 mm available upon request)

working temperature

0℃~60℃

storage temperature

-20℃~70℃

humidity

0%–80% RH (no condensation)


| Product Options:

KVM-1901HD

1901HD Host / 1.8-meter VGA cable *1 / 1.5-meter standard power cord

Optional

Supports customizable HDMI/DVI ports


fittings of a machine

Marketing Materials

signal wire

power line

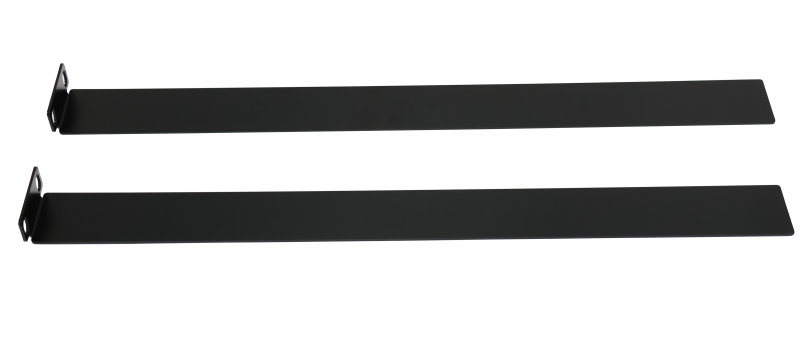

hangers








Quantity

1 set

1 PCS

1 PCS

2 PCS


18.5-inch, 1-Port VGA KVM Control Platform
The KVM-1901HD is a 19-inch standard rack-mountable all-in-one KVM terminal featuring an 18.5-inch large screen, an integrated LED display, keyboard, and mouse, as well as built-in stereo speakers. It supports a single VGA video input, Measuring 506 mm in length, it is compatible with cabinets 800–1040 mm deep and is ideal for server rooms, surveillance, and industrial control environments requiring a high-definition large screen and audio output.
