17-inch 8-Port CAT5 KVM Console
17" 1280*1024 Scalable Remote IP 8-port CAT5 KVM consoleThe KVM-1708C is a 19-inch, 1U standard rack-mountable CAT5 digital Ethernet KVM all-in-one console that integrates a 17-inch TFT LED display, an ultra-slim silent keyboard, a high-sensitivity touchpad, and a switch into a single unit. It supports KVM signal extension up to 150 meters via CAT5e/CAT6 twisted-pair cable and enables centralized management of multiple servers, PCs, industrial computers, and network devices, making it suitable for data center facilities, industrial control environmen
17" 1280*1024 Scalable Remote IP 8-port CAT5 KVM console
KVM-1708C
- Parameters
KVM-1708C
| Product Features：
1. 17-inch Display System
² Screen Specifications: 17-inch TFT LED-backlit, 4:3 widescreen
² Resolution: 1280*1024@60HZ/75HZ
2. Integrated Keyboard and Mouse Control Unit
² Built-in 104-key ultra-slim silent keyboard
² Features a high-sensitivity touchpad with scroll wheel functionality
² Front USB ports support direct connection of wired and wireless keyboards and mice
3. CAT5 Ethernet Cable Extension and Switching
² Port Configuration: 8/16/24/32 RJ45 ports
² Transmission Distance: Stable transmission up to 150 meters with CAT5e cable
² Signal Types: Compressed VGA & USB transmission (HDMI & USB modules available as optional accessories)
² Switching Methods: Triple switching via KVM OSD menu, panel buttons, and keyboard hotkeys
² On-Screen Display (OSD) with multilingual menu, port naming, password protection, and auto-scan
4. Industrial-Grade Rack Mount Design
² Standard 19-inch 1U rack-mount design with pull-out slide rail mechanism
² Rails feature a self-locking mechanism, compatible with cabinets 800–1040 mm deep
² Stable and reliable: Supports dual power inputs, with low overall power consumption and stable operation.
5. Compatibility and Reliability
² Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang
² Supports multiple operating systems, including Windows, Linux, CentOS, Kylin, and Ningsi
|Product Connection Diagram：
| Product Dimensions：
| Product Technical Specifications:
model | KVM-1708C | |
Number of controlled devices | 8 computers, 5 types of network cables (1–150 meters each) | |
Connection Port | VGA to CAT5 module cable; HDMI to CAT5 module (optional) | |
Control Port Type | Local USB keyboard and mouse with VGA display; Remote IP control (optional) | |
switching mode | KVM OSD Menu, Shortcuts, Buttons | |
Hotkey Support | Provide multiple hotkeys (Scroll-Lock / Caps-Lock / Num-Lock / KVM OSD) | |
LCD | size | 17' TFT LED |
resolution ratio | 1280*1024 60HZ/75HZ | |
Maximum Color | 16.7M | |
luminance | 250 nits (customizable for highlight display) | |
contrast ratio | 1000:1 | |
Show display surface type/Pixel spacing | 338*269 4：3 / 0.264 x 0.264 mm | |
Keyboard/Mouse | Key 104: Ultra-thin silent keyboard with a scroll wheel and touchpad | |
source | Supports dual power sources: AC 100–240 V at 50/60 Hz, or a power adapter (12 V, 3.33 A); a built-in power supply is included by default. | |
Actual power consumption of the entire device | Approximately 18 W | |
Material Technology | Environmental-friendly ROHS-compliant materials | |
Appearance Color | Black high-temperature spray painting dot application process (other colors can be customized) | |
Size (L x W x H) | 528mm*465mm*44mm； | |
Guideway pulling stroke | 85MM | |
Total unfolding height | 385MM | |
Product Weight | Net weight: 10.75 kg; Gross weight: 16.9 kg | |

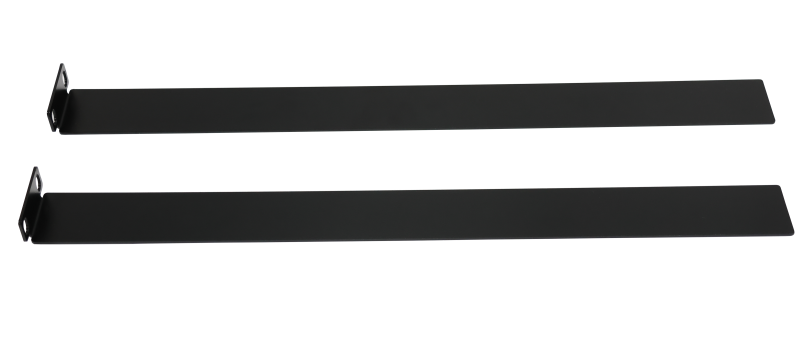

Install the cabinet | 800–1040 mm (Standard hanging ear length: 450 mm; 650 mm/750 mm available upon request) | |
working temperature | 0℃~60℃ | |
storage temperature | -20℃~70℃ | |
humidity | 0%–80% RH (no condensation) | |
| Product Options :

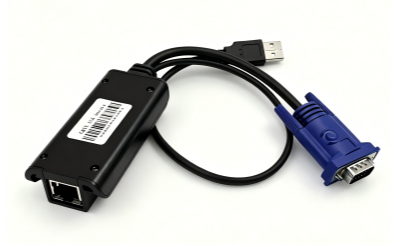

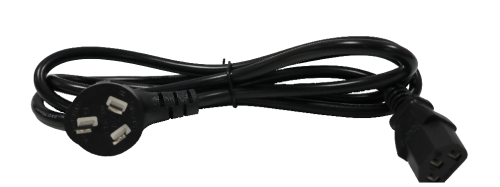

KVM-1708C | 1708C Host Unit / VGA to CAT5 Module (8 units each) / 1.5M National Standard Power Cable |
Optional | HDMI to CAT5 Module |

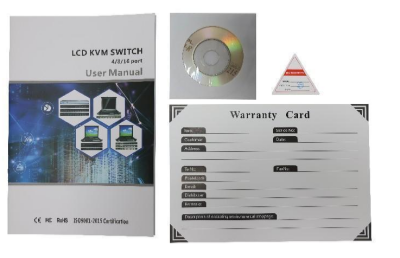

Accessories | Instruction Manual Information | Module | Power Cord | Drip Bag |
Image |
|
|
|
|
Quantity |
1 set |
8 PCS |
1 PCS |
2 PCS |
| Product Packaging：
