17.3-inch 8-Port CAT5 KVM Console Over IP

| Product Features：

1. 17.3-inch Display System

² Screen Specifications: 17.3-inch TFT LED-backlit, 16:9 widescreen

² Resolution: 1920×1080@60Hz (FHD)

2. Integrated Keyboard and Mouse Control Unit

² Built-in 104-key ultra-slim silent keyboard

² Features a high-sensitivity touchpad with scroll wheel functionality

²  Front USB ports support direct connection of wired and wireless keyboards and mice

3. CAT5 Ethernet Cable Extension and Switching

² Port Configuration: 8/16/24/32 RJ45 ports

² Transmission Distance: Stable transmission up to 150 meters with CAT5e cable

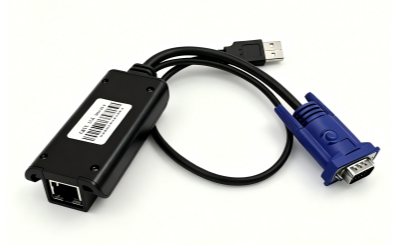

² Signal Types: Compressed VGA & USB transmission (HDMI & USB modules available as optional accessories)

² Switching Methods: Triple switching via KVM OSD menu, panel buttons, and keyboard hotkeys

² On-Screen Display (OSD) with multilingual menu, port naming, password protection, and auto-scan

4. Industrial-Grade Rack Mount Design

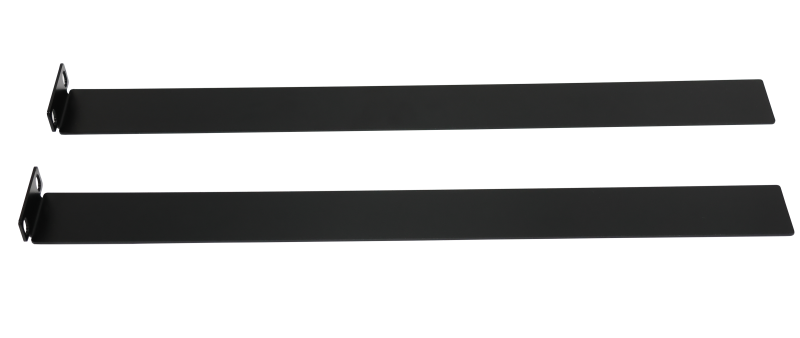

² Standard 19-inch 1U rack-mount design with pull-out slide rail mechanism

² Rails feature a self-locking mechanism, compatible with cabinets 600–1040 mm deep

² Stable and reliable: Supports dual power inputs, with low overall power consumption and stable operation.

5. Compatibility and Reliability

² Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang

² Supports multiple operating systems, including Windows, Linux, CentOS, Kylin, and Ningsi

6. IP Remote Access Features

² Supports iMAC, PowerMAC, and Sun Microsystems devices via USB ports

² Supports external authentication servers and centralized management of user permissions

² Supports security logging, recording device and switch events, user logins and logouts, network activity, etc.

² Supports SYSLOG event logging, with the ability to direct logs to a SYSLOG server

² System logging supports the SNMP protocol

² Supports remote network and SSH protocol access

² Supports browser-based operation of the KVM and connection to its target servers

² Supports local control port configuration and remote browser-based KVM configuration

² Can be integrated with the SVC3000 management software for a centralized control platform

² Supports multiple security authentication mechanisms: HikAuth, RSA, USBKEY, RADIUS, LDAP, TACACS+

² Advanced security mechanisms include password protection and advanced encryption technologies; 128-bit AES data encryption supports IP access control list filtering
