17.3-inch 16-Port CAT5 KVM Console
17.3" 1920*1200 Scalable Remote IPThe KVM-1716HC is a 19-inch, 1U standard rack-mountable CAT5 digital Ethernet KVM all-in-one console that integrates a 17.3-inch TFT LED display, an ultra-slim silent keyboard, a high-sensitivity touchpad, and a switch into a single unit. It supports KVM signal extension up to 150 meters via CAT5e/CAT6 twisted-pair cable and enables centralized management of multiple servers, PCs, industrial computers, and network devices, making it suitable for data center facilities, industrial control environ
17.3" 1920*1200 Scalable Remote IP
KVM-1716HC
- Parameters
KVM-1716HC
|Product Features：
1.17.3-inch Display System
￮Screen Specifications: 17.3-inch TFT LED-backlit, 16:9 widescreen
￮Resolution: 1920×1080@60Hz (FHD)
2.Integrated Keyboard and Mouse Control Unit
￮Built-in 104-key ultra-slim silent keyboard
￮ Features a high-sensitivity touchpad with scroll wheel functionality
￮ Front USB ports support direct connection of wired and wireless keyboards and mice
3.CAT5 Ethernet Cable Extension and Switching
￮ Port Configuration: 8/16/24/32 RJ45 ports
￮ Transmission Distance: Stable transmission up to 150 meters with CAT5e cable
￮ Signal Types: Compressed VGA & USB transmission (HDMI & USB modules available as optional accessories)
￮ Switching Methods: Triple switching via KVM OSD menu, panel buttons, and keyboard hotkeys
￮ On-Screen Display (OSD) with multilingual menu, port naming, password protection, and auto-scan
4.Industrial-Grade Rack Mount Design
￮ Standard 19-inch 1U rack-mount design with pull-out slide rail mechanism
￮ Rails feature a self-locking mechanism, compatible with cabinets 600–1040 mm deep
￮ Stable and reliable: Supports dual power inputs, with low overall power consumption and stable operation.
5. Compatibility and Reliability
￮ Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang
￮ Supports multiple operating systems, including Windows, Linux, CentOS, Kylin, and Ningsi
|Product Connection Diagram：
|Product Dimensions：
| Product Technical Specifications:
model | KVM-1716HC | |
Number of controlled devices | 16 computers, 5 types of network cables (1–150 meters each) | |
Connection Port | VGA to CAT5 module cable; HDMI to CAT5 module (optional) | |
Control Port Type | Local USB keyboard and mouse with VGA display; Remote IP control (optional) | |
switching mode | KVM OSD Menu, Shortcuts, Buttons | |
Hotkey Support | Provide multiple hotkeys (Scroll-Lock / Caps-Lock / Num-Lock / KVM OSD) | |
LCD | size | 17.3-inch TFT LED display with a 16:9 aspect ratio |
resolution ratio | 1920*1080 @ 60HZ | |
Maximum Color | 16.7M | |
luminance | 250–300 nits (customizable for highlight display) | |
contrast ratio | 600:1 | |
Show display surface type/Pixel spacing | 380*215 16：9 / 0.198 x 0.198 mm | |
Keyboard/Mouse | Key 104: Ultra-thin silent keyboard with a scroll wheel-enabled trackpad | |
source | Supports dual power sources: AC 100–240 V at 50/60 Hz, or a power adapter (12 V, 3.33 A); a built-in power supply is included by default. | |
Actual power consumption of the entire device | Approximately 18 W | |
Material Technology | Environmental-friendly ROHS-compliant materials | |
Appearance Color | Black high-temperature spray painting dot application process (other colors can be customized) | |
Size (L x W x H) | 450mm*465mm*44mm； | |
Guideway pulling stroke | 45MM | |
Total unfolding height | 325MM | |
Product Weight | Net weight: 10.75 kg; Gross weight: 16.9 kg | |

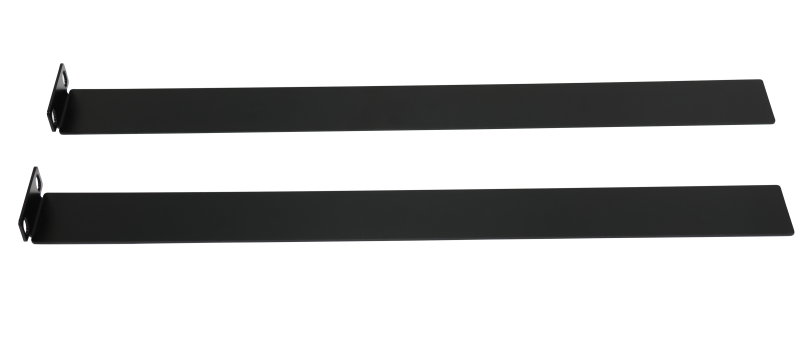

Install Cabinet | 600–1040 mm (Standard hanging ear length: 450 mm; 650 mm/750 mm available upon request) | |
working temperature | 0℃~60℃ | |
storage temperature | -20℃~70℃ | |
humidity | 0%–80% RH (no condensation) | |
|Product Options:

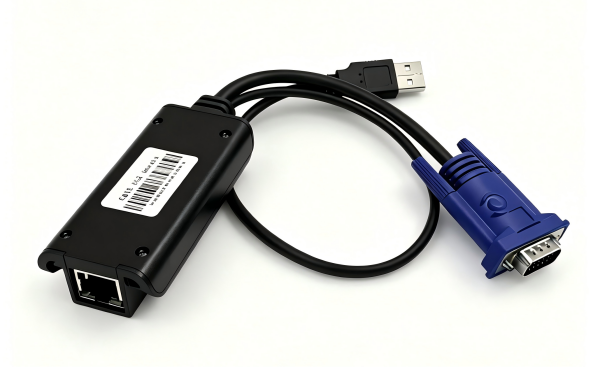

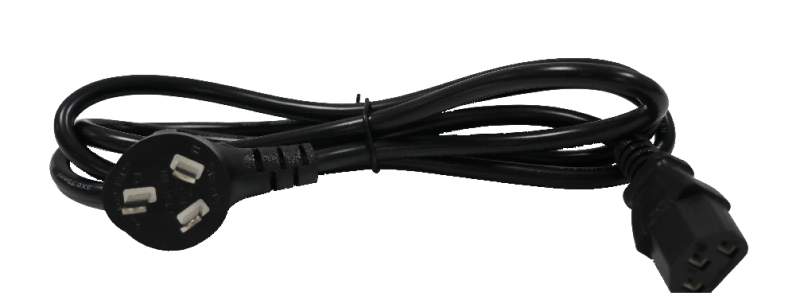

KVM-1716HC | 1716HC Host Unit / VGA to CAT5 Module (16 units each) / 1.5M National Standard Power Cable |
Optional | HDMI to CAT5 Module |
Accessories | Instruction Manual Information | Module | Power Cord | Drip Bag |
Image |
|
|
|
|
Quantity |
1 set |
16 PCS |
1 PCS |
2 PCS |
|Product Packaging：
