15.6-inch Single-Port VGA KVM Control Platform

1920*1080 15.6'' VGA Switch

The KVM-1501HD is an ultra-compact, rack-mountable all-in-one KVM terminal that integrates a 15.6-inch LED display, keyboard, and mouse into a single unit. With a depth of just 300 mm, it is ideal for compact cabinets and space-constrained environments, making it the preferred choice for efficient operations and maintenance in data centers and industrial control settings.

1920*1080 15.6'' VGA Switch

    KVM-1501HD

  • Parameters

    KVM-1501HD

| Product Features:


·All-in-One Integrated Design: Features a 15.6-inch LED TFT LCD display, an ultra-slim, silent keyboard, and a highly sensitive touchpad—all integrated into a single unit—to maximize cabinet space savings and enable simple, efficient deployment.


·High-Definition Display Performance: Supports 1920×1080 60Hz Full HD resolution, 300 nits brightness, 700:1 contrast ratio, and 16.7 million true colors, delivering clear and detailed images to meet a wide range of O&M display needs.


·Highly Adaptable Compact Chassis: With a 300 mm ultra-slim chassis and a pull-out self-locking rail with a 72 mm travel, it fits project-specific compact cabinets; quick installation and removal by a single person significantly improves O&M efficiency.


·Wide Compatibility with Equipment and Systems: Compatible with mainstream servers and industrial PCs from IBM, Dell, HP, Sun, Lenovo, Advantech, and Yanshang, among others; supports multiple operating systems including Windows, Linux, CentOS, Kylin, and Ningsi, offering high versatility.


·Durable and Eco-Friendly Construction: Made with ROHS-compliant materials and featuring a black high-temperature spray-painted finish with a speckled texture, it is wear-resistant and rugged, suitable for long-term, stable operation in data center environments.





| Product Dimensions:

|Product Technical Specifications

model

KVM-1501HD

Number of controlled devices

1 PC

interface type

VGA

LCD

size

15.6' TFT  LED


resolution ratio

1920*1080 @ 60HZ


Maximum Color

16.7M


luminance

300 nits (customizable for high brightness)


contrast ratio

700:1


Show display surface type/Pixel spacing

344.16(W)×193.59(H) mm 169  /  0.17925×0.17925 mm

Keyboard/Mouse

Key 104: Ultra-thin silent keyboard with a scroll wheel-enabled trackpad

source

Power Adapter: 12V 3.33A

Actual power consumption of the entire device

Approximately 18 W

Material Technology

Environmental-friendly ROHS-compliant materials

Appearance Color

Black high-temperature spray painting spot application process (other options available upon request)

Size (L x W x H)

300mm*465mm*44mm

Guideway pulling stroke

72MM

Total unfolding height

285MM

Product Weight

Net weight: 7.80 kg; Gross weight: 9.20 kg

Install the cabinet

600mm

working temperature

0℃~60℃

storage temperature

-20℃~70℃

humidity

0%–80% RH (no condensation)


| Product Options:

KVM-1501HD

1501HD main unit / 1 x 1.8-meter VGA cable / 12V/3.33A power adapter / 1.5-meter national standard power cable


fittings of a machine

Marketing Materials

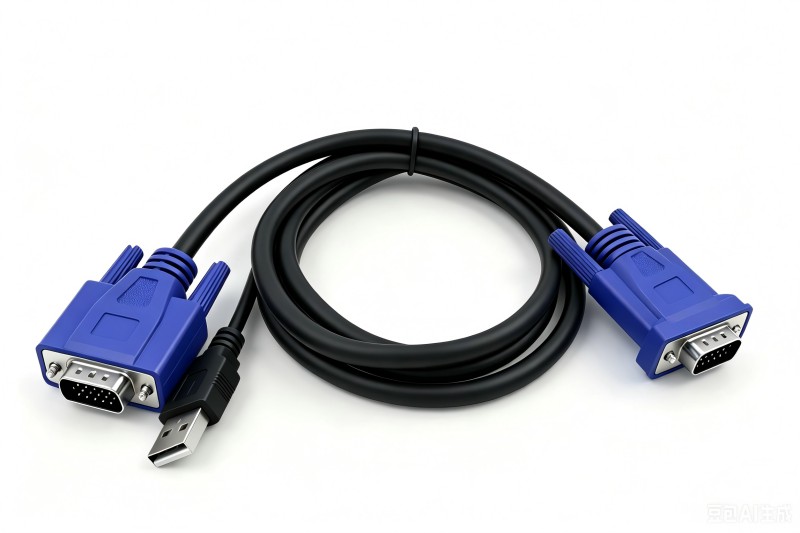

VGA Cable

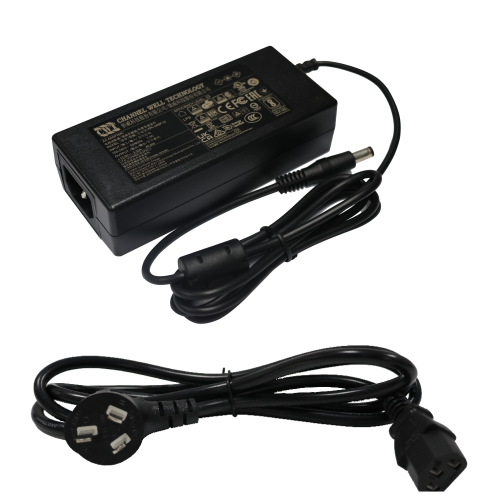

Power Cable + Adapter

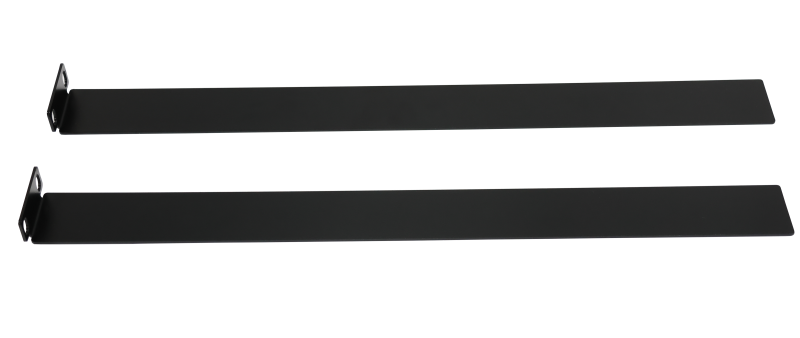

hangers






quantity

1 set

1 PCS

1 PCS

2 PCS


15.6-inch Single-Port VGA KVM Control Platform
The KVM-1501HD is an ultra-compact, rack-mountable all-in-one KVM terminal that integrates a 15.6-inch LED display, keyboard, and mouse into a single unit. With a depth of just 300 mm, it is ideal for compact cabinets and space-constrained environments, making it the preferred choice for efficient operations and maintenance in data centers and industrial control settings.
